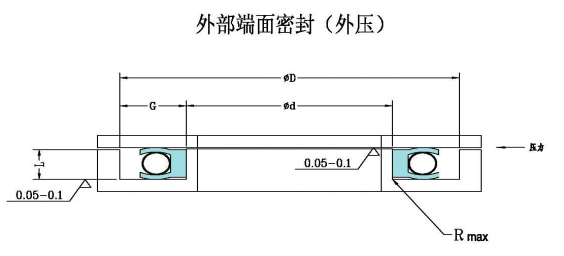

活塞组合密封圈 端面外向弹簧蓄能密封圈
型号：齐全
名称：活塞组合密封圈 端面外向弹簧蓄能密封圈
说明：弹簧蓄能密封圈在低压和零压时，初始密封力由金属弹簧产生。当系统压力升高时，则主要密封力由系统压力形成。因此，从零压到高压均能保证良好密封。特殊场合可在弹簧处的空腔充填弹性胶，防止污物进入密封体，并可进行消毒，常用于食品及医药行业，还可用在泥渣、稀浆或胶质等场合.
|
沟槽内径 d h11 |
3-9.9 |
10-19.9 |
20-39.9 |
40-119.9 |
120-999.9 |
|
沟槽宽度 Gmin |
2.4 |
3.6 |
4.8 |
7.1 |
9.5 |
|
沟槽深度 L ±0.2 |
1.45 |
2.25 |
3.10 |
4.70 |
6.10 |
|
深度公差 |
+0.03 |
+0.05 |
+0.08 |
+0.10 |
+0.15 |
|
圆角 Rmax |
0.4 |
0.4 |
0.6 |
0.8 |
0.8 |
端面产品尺寸系列表
|
订货号 |
d |
D |
L |
|
订货号 |
d |
D |
L |
|
S4 |
4 |
8.8 |
1.45 |
|
S85 |
85 |
99.2 |
4.7 |
|
S5 |
5 |
9.8 |
1.45 |
|
S90 |
90 |
104.2 |
4.7 |
|
S6 |
6 |
10.8 |
1.45 |
|
S95 |
95 |
109.2 |
4.7 |
|
S8 |
8 |
12.8 |
1.45 |
|
S100 |
100 |
114.2 |
4.7 |
|
S10 |
10 |
17.2 |
2.25 |
|
S105 |
105 |
119.2 |
4.7 |
|
S12 |
12 |
19.2 |
2.25 |
|
S110 |
110 |
124.2 |
4.7 |
|
S14 |
14 |
21.2 |
2.25 |
|
S115 |
115 |
129.2 |
4.7 |
|
S15 |
15 |
22.2 |
2.25 |
|
S120 |
120 |
139 |
6.1 |
|
S16 |
16 |
23.2 |
2.25 |
|
S125 |
125 |
144 |
6.1 |
|
S18 |
18 |
25.2 |
2.25 |
|
S130 |
130 |
149 |
6.1 |
|
S20 |
20 |
29.6 |
3.1 |
|
S135 |
135 |
154 |
6.1 |
|
S22 |
22 |
31.6 |
3.1 |
|
S140 |
140 |
159 |
6.1 |
|
S25 |
25 |
34.6 |
3.1 |
|
S150 |
150 |
169 |
6.1 |
|
S28 |
28 |
37.6 |
3.1 |
|
S160 |
160 |
179 |
6.1 |
|
S30 |
30 |
39.6 |
3.1 |
|
S170 |
170 |
189 |
6.1 |
|
S32 |
32 |
41.6 |
3.1 |
|
S180 |
180 |
199 |
6.1 |
|
S35 |
35 |
44.6 |
3.1 |
|
S190 |
190 |
209 |
6.1 |
|
S36 |
36 |
45.6 |
3.1 |
|
S200 |
200 |
219 |
6.1 |
|
S40 |
40 |
54.2 |
4.7 |
|
S210 |
210 |
229 |
6.1 |
|
订货号 |
d |
D |
L |
|
订货号 |
d |
D |
L |
|
S42 |
42 |
56.2 |
4.7 |
|
S220 |
220 |
239 |
6.1 |
|
S45 |
45 |
59.2 |
4.7 |
|
S230 |
230 |
249 |
6.1 |
|
S48 |
48 |
62.2 |
4.7 |
|
S240 |
240 |
259 |
6.1 |
|
S50 |
50 |
64.2 |
4.7 |
|
S280 |
280 |
299 |
6.1 |
|
S52 |
52 |
66.2 |
4.7 |
|
S300 |
300 |
319 |
6.1 |
|
S55 |
55 |
69.2 |
4.7 |
|
S320 |
320 |
339 |
6.1 |
|
S56 |
56 |
70.2 |
4.7 |
|
S350 |
350 |
369 |
6.1 |
|
S60 |
60 |
74.2 |
4.7 |
|
S360 |
360 |
379 |
6.1 |
|
S63 |
63 |
77.2 |
4.7 |
|
S400 |
400 |
419 |
6.1 |
|
S65 |
65 |
79.2 |
4.7 |
|
S420 |
420 |
439 |
6.1 |
|
S70 |
70 |
84.2 |
4.7 |
|
S450 |
450 |
469 |
6.1 |
|
S75 |
75 |
89.2 |
4.7 |
|
S480 |
480 |
499 |
6.1 |
|
S80 |
80 |
94.2 |
4.7 |
|
S500 |
500 |
519 |
6.1 |
